iree 编译流程(3)——Stream::StreamTransformPassPipeline

6 Stream::StreamTransformPassPipeline

主要作用是将 program 转换到 stream dialect，优化变量编码方式，划分调度子图，生成异步调度策略，并实现内存规划策略。

6.1 buildStreamTensorPassPipeline

  • IREE::Stream::createVerifyInputPass 检查program的合法性。

  • IREE::Stream::createOutlineConstantsPass 将 module 内部的dense constant转换成global dense constant。
    func.func @test(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
  %cst = arith.constant dense<[0.000000e+00, 0.00999999977, 2.000000e-02, 3.000000e-02, 4.000000e-02, 5.000000e-02, 6.000000e-02, 7.000000e-02, 8.000000e-02, 9.000000e-02]> : tensor<10xf32>
  %c10 = arith.constant 10 : index
  %0 = hal.tensor.import %arg0 : !hal.buffer_view -> tensor<1x10xf32>
  %1 = flow.tensor.reshape %0 : tensor<1x10xf32> -> tensor<10xf32>
  %2 = flow.tensor.empty : tensor<10xf32>
  %3 = flow.dispatch @test_dispatch_0::@test_dispatch_0_generic_10[%c10](%1, %cst, %2) : (tensor<10xf32>, tensor<10xf32>, tensor<10xf32>) -> %2
  %4 = flow.tensor.reshape %3 : tensor<10xf32> -> tensor<1x10xf32>
  %5 = hal.tensor.export %4 : tensor<1x10xf32> -> !hal.buffer_view
  return %5 : !hal.buffer_view
}

    转换成，

    util.global private @_constant {noinline} = dense<[0.000000e+00, 0.00999999977, 2.000000e-02, 3.000000e-02, 4.000000e-02, 5.000000e-02, 6.000000e-02, 7.000000e-02, 8.000000e-02, 9.000000e-02]> : tensor<10xf32>
func.func @test(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
  %_constant = util.global.load @_constant : tensor<10xf32>
  %c10 = arith.constant 10 : index
  %0 = hal.tensor.import %arg0 : !hal.buffer_view -> tensor<1x10xf32>
  %1 = flow.tensor.reshape %0 : tensor<1x10xf32> -> tensor<10xf32>
  %2 = flow.tensor.empty : tensor<10xf32>
  %3 = flow.dispatch @test_dispatch_0::@test_dispatch_0_generic_10[%c10](%1, %_constant, %2) : (tensor<10xf32>, tensor<10xf32>, tensor<10xf32>) -> %2
  %4 = flow.tensor.reshape %3 : tensor<10xf32> -> tensor<1x10xf32>
  %5 = hal.tensor.export %4 : tensor<1x10xf32> -> !hal.buffer_view
  return %5 : !hal.buffer_view
}

  • addCleanupPatterns

  • IREE::Stream::createConvertToStreamPass 将IREE::Util、IREE::Flow、IREE::HAL以及std dialect转换到IREE::Stream dialect。
    module {
  util.global private @_constant {noinline} = dense<[0.000000e+00, 0.00999999977, 2.000000e-02, 3.000000e-02, 4.000000e-02, 5.000000e-02, 6.000000e-02, 7.000000e-02, 8.000000e-02, 9.000000e-02]> : tensor<10xf32>
  flow.executable private @test_dispatch_0 {
    flow.executable.export public @test_dispatch_0_generic_10 workgroups(%arg0: index) -> (index, index, index) {
      %x, %y, %z = flow.dispatch.workgroup_count_from_dag_root %arg0
      flow.return %x, %y, %z : index, index, index
    }
    builtin.module {
      func.func @test_dispatch_0_generic_10(%arg0: !flow.dispatch.tensor<readonly:tensor<10xf32>>, %arg1: !flow.dispatch.tensor<readonly:tensor<10xf32>>, %arg2: !flow.dispatch.tensor<readwrite:tensor<10xf32>>) {
        %0 = flow.dispatch.tensor.load %arg0, offsets = [0], sizes = [10], strides = [1] : !flow.dispatch.tensor<readonly:tensor<10xf32>> -> tensor<10xf32>
        %1 = flow.dispatch.tensor.load %arg1, offsets = [0], sizes = [10], strides = [1] : !flow.dispatch.tensor<readonly:tensor<10xf32>> -> tensor<10xf32>
        %2 = flow.dispatch.tensor.load %arg2, offsets = [0], sizes = [10], strides = [1] : !flow.dispatch.tensor<readwrite:tensor<10xf32>> -> tensor<10xf32>
        %3 = linalg.generic {indexing_maps = [affine_map<(d0) -> (d0)>, affine_map<(d0) -> (d0)>, affine_map<(d0) -> (d0)>], iterator_types = ["parallel"]} ins(%0, %1 : tensor<10xf32>, tensor<10xf32>) outs(%2 : tensor<10xf32>) {
        ^bb0(%in: f32, %in_0: f32, %out: f32):
          %4 = arith.addf %in, %in_0 : f32
          linalg.yield %4 : f32
        } -> tensor<10xf32>
        flow.dispatch.tensor.store %3, %arg2, offsets = [0], sizes = [10], strides = [1] : tensor<10xf32> -> !flow.dispatch.tensor<readwrite:tensor<10xf32>>
        return
      }
    }
  }
  func.func @test(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
    %c10 = arith.constant 10 : index
    %_constant = util.global.load @_constant : tensor<10xf32>
    %0 = hal.tensor.import %arg0 : !hal.buffer_view -> tensor<1x10xf32>
    %1 = flow.tensor.reshape %0 : tensor<1x10xf32> -> tensor<10xf32>
    %2 = flow.tensor.empty : tensor<10xf32>
    %3 = flow.dispatch @test_dispatch_0::@test_dispatch_0_generic_10[%c10](%1, %_constant, %2) : (tensor<10xf32>, tensor<10xf32>, tensor<10xf32>) -> %2
    %4 = flow.tensor.reshape %3 : tensor<10xf32> -> tensor<1x10xf32>
    %5 = hal.tensor.export %4 : tensor<1x10xf32> -> !hal.buffer_view
    return %5 : !hal.buffer_view
  }
}

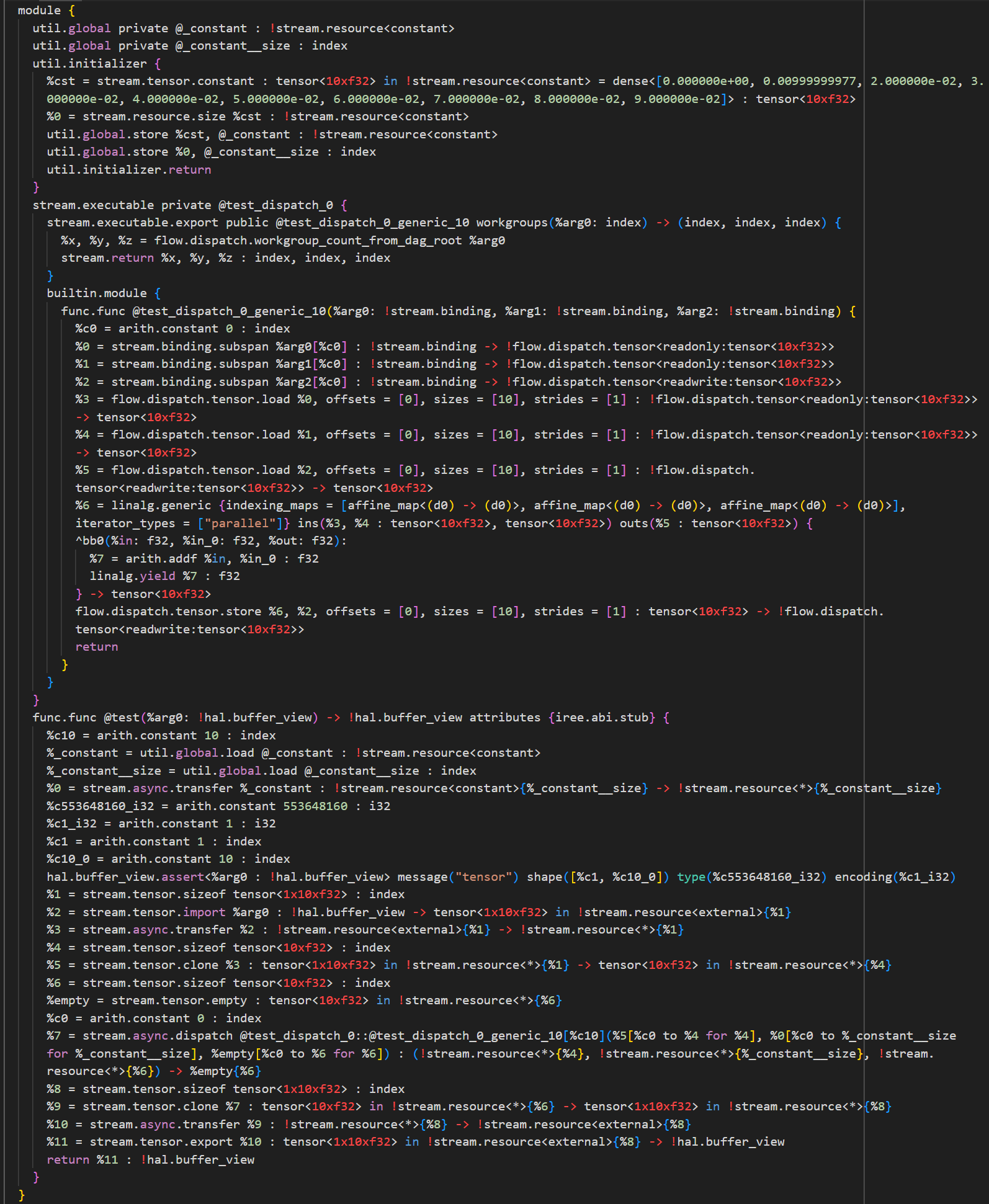

    转换为

    Alt text

可以看到除了flow.executable，module中tensor type都被转换成stream.resource和index，但hal.buffer_view type仍然被保留。初始值为tensor的util.global constant被转换为不带初始值的 stream.resource和index，同时生成了一个util.initializer对 stream.resource和index进行初始化。 util.global.load被转换成util.global.load + stream.async.transfer，hal.tensor.import被转换成stream.tensor.import + stream.async.transfer，hal.tensor.export被转换为stream.async.transfer + stream.tensor.export，flow.tensor.reshape被转换成stream.tensor.clone，flow.executable转换为stream.executable，内部的flow.executable.export转换为stream.executable.export ，内部的func op的argument由flow.dispatch.tensor转换为stream.binding。

  • IREE::Stream::createVerifyLoweringToTensorsPass 检查program的合法性。

  • addCleanupPatterns

  • IREE::Util::createCombineInitializersPass 合并所有的util.initializer ops。

6.2 buildStreamAsyncPassPipeline

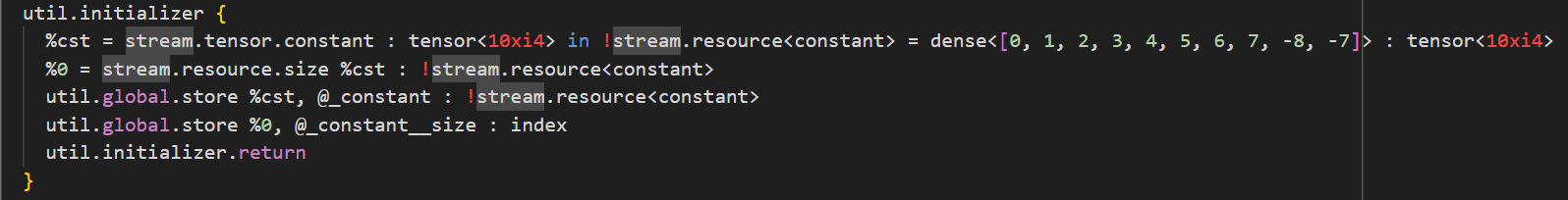

  • IREE::Stream::createEncodeHostTensorsPass 主要作用是将tensor的元素位宽（bit）扩充为 2 的幂大小，并按字节对齐。其中i1~i7转换为i8（1 byte），i9~i15转换为i16 (2 bytes)，i17~i31转换为i32 (4 bytes)，i33~i63转换为i64（8 bytes）。

    Alt text

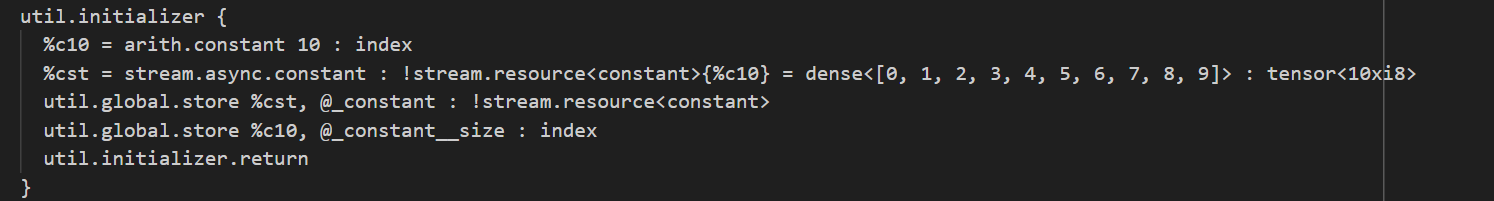

    转换为

![Alt text](../blog_images/github_drawing_board_for_gitpages_blog/iree_5.png)

    %cst的类型从i4转成了i8，此外stream.tensor.constant转换成了stream.async.constant，%0 = stream.resource.size %cst : !stream.resource<constant>直接被替换成了常量%c10。

  • IREE::Stream::createEncodeDeviceTensorsPass 和createEncodeHostTensorsPass作用一样，区别是createEncodeDeviceTensorsPass作用的是stream.executable中的 op。
    builtin.module {
    func.func @test_dispatch_0_generic_10(%arg0: !stream.binding, %arg1: !stream.binding, %arg2: !stream.binding) {
      %c0 = arith.constant 0 : index
      %0 = stream.binding.subspan %arg0[%c0] : !stream.binding -> !flow.dispatch.tensor<readonly:tensor<10xi4>>
      %1 = stream.binding.subspan %arg1[%c0] : !stream.binding -> !flow.dispatch.tensor<readonly:tensor<10xi4>>
      %2 = stream.binding.subspan %arg2[%c0] : !stream.binding -> !flow.dispatch.tensor<readwrite:tensor<10xi4>>
      %3 = flow.dispatch.tensor.load %0, offsets = [0], sizes = [10], strides = [1] : !flow.dispatch.tensor<readonly:tensor<10xi4>> -> tensor<10xi4>
      %4 = flow.dispatch.tensor.load %1, offsets = [0], sizes = [10], strides = [1] : !flow.dispatch.tensor<readonly:tensor<10xi4>> -> tensor<10xi4>
      %5 = flow.dispatch.tensor.load %2, offsets = [0], sizes = [10], strides = [1] : !flow.dispatch.tensor<readwrite:tensor<10xi4>> -> tensor<10xi4>
      %6 = linalg.generic {indexing_maps = [affine_map<(d0) -> (d0)>, affine_map<(d0) -> (d0)>, affine_map<(d0) -> (d0)>], iterator_types = ["parallel"]} ins(%3, %4 : tensor<10xi4>, tensor<10xi4>) outs(%5 : tensor<10xi4>) {
      ^bb0(%in: i4, %in_0: i4, %out: i4):
        %7 = arith.addi %in, %in_0 : i4
        linalg.yield %7 : i4
      } -> tensor<10xi4>
      flow.dispatch.tensor.store %6, %2, offsets = [0], sizes = [10], strides = [1] : tensor<10xi4> -> !flow.dispatch.tensor<readwrite:tensor<10xi4>>
      return
    }
}

    转换为，

    builtin.module {
    func.func @test_dispatch_0_generic_10(%arg0: !stream.binding, %arg1: !stream.binding, %arg2: !stream.binding) {
      %c0 = arith.constant 0 : index
      %0 = stream.binding.subspan %arg0[%c0] : !stream.binding -> !flow.dispatch.tensor<readonly:tensor<10xi8>>
      %1 = stream.binding.subspan %arg1[%c0] : !stream.binding -> !flow.dispatch.tensor<readonly:tensor<10xi8>>
      %2 = stream.binding.subspan %arg2[%c0] : !stream.binding -> !flow.dispatch.tensor<readwrite:tensor<10xi8>>
      %3 = flow.dispatch.tensor.load %0, offsets = [0], sizes = [10], strides = [1] : !flow.dispatch.tensor<readonly:tensor<10xi8>> -> tensor<10xi8>
      %4 = arith.trunci %3 : tensor<10xi8> to tensor<10xi4>
      %5 = flow.dispatch.tensor.load %1, offsets = [0], sizes = [10], strides = [1] : !flow.dispatch.tensor<readonly:tensor<10xi8>> -> tensor<10xi8>
      %6 = arith.trunci %5 : tensor<10xi8> to tensor<10xi4>
      %7 = flow.dispatch.tensor.load %2, offsets = [0], sizes = [10], strides = [1] : !flow.dispatch.tensor<readwrite:tensor<10xi8>> -> tensor<10xi8>
      %8 = arith.trunci %7 : tensor<10xi8> to tensor<10xi4>
      %9 = linalg.generic {indexing_maps = [affine_map<(d0) -> (d0)>, affine_map<(d0) -> (d0)>, affine_map<(d0) -> (d0)>], iterator_types = ["parallel"]} ins(%4, %6 : tensor<10xi4>, tensor<10xi4>) outs(%8 : tensor<10xi4>) {
      ^bb0(%in: i4, %in_0: i4, %out: i4):
        %11 = arith.addi %in, %in_0 : i4
        linalg.yield %11 : i4
      } -> tensor<10xi4>
      %10 = arith.extui %9 : tensor<10xi4> to tensor<10xi8>
      flow.dispatch.tensor.store %10, %2, offsets = [0], sizes = [10], strides = [1] : tensor<10xi8> -> !flow.dispatch.tensor<readwrite:tensor<10xi8>>
      return
    }
}

    stream.binding.subspan的result type从i4转换成了i8，并且在flow.dispatch.tensor.load之后插入了一个arith.trunci，将i8截断为i4，进而参与linalg.generic中的计算。

  • IREE::Stream::createMaterializeBuiltinsPass

  • addCleanupPatterns

  • IREE::Stream::createMaterializeCopyOnWritePass 尝试消除stream.async.dispatch后的stream.async.update op。当stream.async.dispatch的结果没有绑定一个 value 时，就可以把stream.async.update的 target 绑定到stream.async.dispatch的结果，使得stream.async.dispatch直接把计算结果更新到 target。

  • IREE::Stream::createRefineUsagePass 确定每个stream.resource的生命期，推导stream.resource的类型。stream.resource类型包括：
    • Unknown: stream.resource<*>
    • External：stream.resource<external> 由外部程序管理的内存
    • Staging：stream.resource<staging> 用于上传/下载的暂存缓冲区
    • Transient：stream.resource<transient> 跨 stream 的一段临时值
    • Variable：stream.resource<variable> 跨 stream 的一段持续值
    • Constant：stream.resource<constant> 整个程序中持续存在的立即值（常量）。

    除此之外还消除了冗余的stream.async.transfer。

    func.func @test(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
    %c40 = arith.constant 40 : index
    %c0 = arith.constant 0 : index
    %c10 = arith.constant 10 : index
    %c553648160_i32 = arith.constant 553648160 : i32
    %c1_i32 = arith.constant 1 : i32
    hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("tensor") shape([%c10]) type(%c553648160_i32) encoding(%c1_i32)
    %0 = stream.tensor.import %arg0 : !hal.buffer_view -> tensor<10xf32> in !stream.resource<external>[%c40]
    %1 = stream.async.transfer %0 : !stream.resource<external>[%c40] -> !stream.resource<*>[%c40]
    %2 = stream.async.dispatch @test_dispatch_0::@test_dispatch_0_generic_10[%c10](%1[%c0 to %c40 for %c40]) : (!stream.resource<*>[%c40]) -> !stream.resource<*>[%c40]
    %3 = stream.async.transfer %2 : !stream.resource<*>[%c40] -> !stream.resource<external>[%c40]
    %4 = stream.tensor.export %3 : tensor<10xf32> in !stream.resource<external>[%c40] -> !hal.buffer_view
    return %4 : !hal.buffer_view
}

    转换为

    func.func @test(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
    %c40 = arith.constant 40 : index
    %c0 = arith.constant 0 : index
    %c10 = arith.constant 10 : index
    %c553648160_i32 = arith.constant 553648160 : i32
    %c1_i32 = arith.constant 1 : i32
    hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("tensor") shape([%c10]) type(%c553648160_i32) encoding(%c1_i32)
    %0 = stream.tensor.import %arg0 : !hal.buffer_view -> tensor<10xf32> in !stream.resource<external>[%c40]
    %1 = stream.async.dispatch @test_dispatch_0::@test_dispatch_0_generic_10[%c10](%0[%c0 to %c40 for %c40]) : (!stream.resource<external>[%c40]) -> !stream.resource<external>[%c40]
    %2 = stream.tensor.export %1 : tensor<10xf32> in !stream.resource<external>[%c40] -> !hal.buffer_view
    return %2 : !hal.buffer_view
}

    !stream.resource<*>{ %c40}被推导为!stream.resource<external>{ %c40}，并且有两处stream.async.transfer被删除了。

  • addCleanupPatterns

  • IREE::Stream::createScheduleExecutionPass 根据启发式算法将每个 callable（包括util.initializer）划分成多个 part 进行调度，每个 part 独立构成一个stream.async.execute，并且每个stream.async.execute后面都跟了一个stream.timepoint.await操作用于同步执行结果。
    func.func @test(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
  %c40 = arith.constant 40 : index
  %c10 = arith.constant 10 : index
  %c553648160_i32 = arith.constant 553648160 : i32
  %c1_i32 = arith.constant 1 : i32
  %c1 = arith.constant 1 : index
  %c0 = arith.constant 0 : index
  %_constant = util.global.load @_constant : !stream.resource<constant>
  hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("tensor") shape([%c1, %c10]) type(%c553648160_i32) encoding(%c1_i32)
  %0 = stream.tensor.import %arg0 : !hal.buffer_view -> tensor<1x10xf32> in !stream.resource<external>[%c40]
  %1 = stream.async.alloca : !stream.resource<external>[%c40]
  %2 = stream.async.dispatch @test_dispatch_0::@test_dispatch_0_generic_10[%c10](%0[%c0 to %c40 for %c40], %_constant[%c0 to %c40 for %c40], %1[%c0 to %c40 for %c40]) : (!stream.resource<external>[%c40], !stream.resource<constant>[%c40], !stream.resource<external>[%c40]) -> %1[%c40]
  %3 = stream.tensor.export %2 : tensor<1x10xf32> in !stream.resource<external>[%c40] -> !hal.buffer_view
  return %3 : !hal.buffer_view
}

    转换成，

    func.func @test(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
  %c40 = arith.constant 40 : index
  %c10 = arith.constant 10 : index
  %c553648160_i32 = arith.constant 553648160 : i32
  %c1_i32 = arith.constant 1 : i32
  %c1 = arith.constant 1 : index
  %c0 = arith.constant 0 : index
  %_constant = util.global.load @_constant : !stream.resource<constant>
  hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("tensor") shape([%c1, %c10]) type(%c553648160_i32) encoding(%c1_i32)
  %0 = stream.tensor.import %arg0 : !hal.buffer_view -> tensor<1x10xf32> in !stream.resource<external>[%c40]
  %results, %result_timepoint = stream.async.execute with(%0 as %arg1: !stream.resource<external>[%c40], %_constant as %arg2: !stream.resource<constant>[%c40]) -> !stream.resource<external>[%c40] {
    %3 = stream.async.alloca : !stream.resource<external>[%c40]
    %4 = stream.async.dispatch @test_dispatch_0::@test_dispatch_0_generic_10[%c10](%arg1[%c0 to %c40 for %c40], %arg2[%c0 to %c40 for %c40], %3[%c0 to %c40 for %c40]) : (!stream.resource<external>[%c40], !stream.resource<constant>[%c40], !stream.resource<external>[%c40]) -> %3[%c40]
    stream.yield %4 : !stream.resource<external>[%c40]
  } => !stream.timepoint
  %1 = stream.timepoint.await %result_timepoint => %results : !stream.resource<external>[%c40]
  %2 = stream.tensor.export %1 : tensor<1x10xf32> in !stream.resource<external>[%c40] -> !hal.buffer_view
  return %2 : !hal.buffer_view
}

  • IREE::Stream::createScheduleConcurrencyPass 继续将stream.async.execute划分为多个并行调度区，每个并行调度区构成一个stream.async.concurrent 。

  • IREE::Stream::createPropagateTimepointsPass 给stream.resource 绑定一个 stream.timepoint，在代码中用stream.resource + stream.timepoint 的 pair 替换原来的stream.resource，并在需要的地方插入 await。

    • util.global
      util.global private @_constant : !stream.resource<constant>

      转换成

      util.global private mutable @_constant__timepoint = #stream.timepoint<immediate> : !stream.timepoint
util.global private @_constant : !stream.resource<constant>
    • util.global.load
      %_constant = util.global.load @_constant : !stream.resource<constant>

      转换成

      %_constant__timepoint = util.global.load @_constant__timepoint : !stream.timepoint
%_constant = util.global.load @_constant : !stream.resource<constant>
%0 = stream.timepoint.await %_constant__timepoint => %_constant : !stream.resource<constant>[%c40]
    • util.global.store
      util.global.store %0, @_constant : !stream.resource<constant>

      转换成

      util.global.store %result_timepoint, @_constant__timepoint : !stream.timepoint
util.global.store %results, @_constant : !stream.resource<constant>
    • func.func
      func.func @foo(%0: !stream.resource) {
...
}

      转换成

      func.func @foo(%t: !stream.timepoint, %0: !stream.resource) {
%1 = stream.timepoint.await %t, %0
...
}
    • call 由于 func 内部已经插入了 await，因此 call 之前的冗余 await 可以删除，call 之后需要再插入一个 func 返回值的 await。
      %1 = stream.timepoint.await %t, %0
%r = call @foo(%1)

      转换成

      %rt, %r = call @foo(%t, %0)
stream.timepoint.await %rt, %t
    • return
      %1 = stream.timepoint.await %t, %0
return %1

      转换成

      return %t, %0
    • branch

    将参数的 await 挪到 branch 里面。

    %1 = stream.timepoint.await %t, %0
br ^bb1(%1)

^bb1(%b):
  ...

    转换成

    br ^bb1(%t, %0)
^bb1(%a, %b):
  %1 = stream.timepoint.await %a, %b
    • stream.async.execute

    为每个未绑定stream.timepoint的输入参数绑定一个stream.timepoint，并在stream.async.execute之前计算参数的最大timepoint，stream.async.execute 则 await 这个最大 timepoint。

    %results, %result_timepoint = stream.async.execute with(%0 as %arg1: !stream.resource<external>[%c40], %_constant as %arg2: !stream.resource<constant>[%c40]) -> !stream.resource<external>[%c40] {
  ...
}

    转换成

    %3 = stream.timepoint.join max(%2, %_constant__timepoint) => !stream.timepoint
%results, %result_timepoint = stream.async.execute await(%3) => with(%1 as %arg1: !stream.resource<external>[%c40], %_constant as %arg2: !stream.resource<constant>[%c40]) -> !stream.resource<external>[%c40] {
  ...
}

  • addCleanupPatterns

  • IREE::Stream::createVerifyLoweringToAsyncPass

    验证LoweringToAsyncPass阶段program的合法性。

6.3 buildStreamCmdPassPipeline

  • IREE::Stream::createScheduleAllocationPass
    • 首先将所有常量 op 聚合成一个stream.resource.constants，并移出该 region，stream.resource.constants的结果会被 append 到该 region 的输入参数中（原本直接 yield 的常量除外）。
      %results, %result_timepoint = stream.async.execute with() -> !stream.resource<constant>[%c40] {
    %cst = stream.async.constant : !stream.resource<constant>[%c40] = dense<[0.000000e+00, 0.00999999977, 2.000000e-02, 3.000000e-02, 4.000000e-02, 5.000000e-02, 6.000000e-02, 7.000000e-02, 8.000000e-02, 9.000000e-02]> : tensor<10xf32>
    stream.yield %cst : !stream.resource<constant>[%c40]
} => !stream.timepoint

      转换成

      %results, %result_timepoint = stream.resource.constants :
    !stream.resource<constant>[%c40] = dense<[0.000000e+00, 0.00999999977, 2.000000e-02, 3.000000e-02, 4.000000e-02, 5.000000e-02, 6.000000e-02, 7.000000e-02, 8.000000e-02, 9.000000e-02]> : tensor<10xf32>
    => !stream.timepoint
%0 = stream.cmd.execute with() {
} => !stream.timepoint
%1 = stream.timepoint.join max(%result_timepoint, %0) => !stream.timepoint
      • 分析stream.async.execute region中 resource 的类型和他们之间的 alias 关系，按照 resource 的类型统一分配空间。对于没有被 Tied 到输入（即非 inplace ）的 results，会统一在 region 外面由stream.resource.alloc申请一段 external 空间，region 再通过 Tied 的方式消费 alloc 的结果。对于中间临时的 esource，经过stream.resource.pack计算需要分配的空间大小后统一由stream.resource.alloca申请一段 transient 空间，并会在 region 后面插入stream.resource.dealloca释放申请的临时空间。
        func.func @predict(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
%c8 = arith.constant 8 : index
%c40 = arith.constant 40 : index
%c4 = arith.constant 4 : index
%c0 = arith.constant 0 : index
%c1 = arith.constant 1 : index
%c10 = arith.constant 10 : index
%c553648160_i32 = arith.constant 553648160 : i32
%c1_i32 = arith.constant 1 : i32
%c2 = arith.constant 2 : index
hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("tensor") shape([%c1, %c2]) type(%c553648160_i32) encoding(%c1_i32)
%0 = stream.tensor.import %arg0 : !hal.buffer_view -> tensor<1x2xf32> in !stream.resource<external>[%c8}]      // stream.async.execute
%results, %result_timepoint = stream.async.execute with(%0 as %arg1: !stream.resource<external>[%c8}] -> !stream.resource<external>[%c40] {
  %3 = stream.async.dispatch @predict_dispatch_0::@predict_dispatch_0_matmul_1x10x2[%c1, %c10](%arg1[%c0 to %c8 for %c8]) : (!stream.resource<external>[%c8}] -> !stream.resource<transient>[%c40]
  %4 = stream.async.dispatch @predict_dispatch_1::@predict_dispatch_1_generic_10[%c1](%3[%c0 to %c40 for %c40]) : (!stream.resource<transient>[%c40]) -> !stream.resource<transient>[%c4}]        %5 = stream.async.dispatch @predict_dispatch_2::@predict_dispatch_2_generic_1x10[%c1, %c10](%3[%c0 to %c40 for %c40], %4[%c0 to %c4 for %c4]) : (!stream.resource<transient>[%c40], !stream.resource<transient>[%c4}] -> !stream.resource<transient>[%c40]
  %6 = stream.async.dispatch @predict_dispatch_3::@predict_dispatch_3_generic_10[%c1](%5[%c0 to %c40 for %c40]) : (!stream.resource<transient>[%c40]) -> !stream.resource<transient>[%c4}]        %7 = stream.async.dispatch @predict_dispatch_4::@predict_dispatch_4_generic_1x10[%c1, %c10](%5[%c0 to %c40 for %c40], %6[%c0 to %c4 for %c4]) : (!stream.resource<transient>[%c40], !stream.resource<transient>[%c4}] -> !stream.resource<external>[%c40]
  stream.yield %7 : !stream.resource<external>[%c40]
} => !stream.timepoint
%1 = stream.timepoint.await %result_timepoint => %results : !stream.resource<external>[%c40]
%2 = stream.tensor.export %1 : tensor<1x10xf32> in !stream.resource<external>[%c40] -> !hal.buffer_view
return %2 : !hal.buffer_view
}

        转换成，

        func.func @predict(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
%c8 = arith.constant 8 : index
%c40 = arith.constant 40 : index
%c4 = arith.constant 4 : index
%c0 = arith.constant 0 : index
%c1 = arith.constant 1 : index
%c10 = arith.constant 10 : index
%c553648160_i32 = arith.constant 553648160 : i32
%c1_i32 = arith.constant 1 : i32
%c2 = arith.constant 2 : index
hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("tensor") shape([%c1, %c2]) type(%c553648160_i32) encoding(%c1_i32)
%0 = stream.tensor.import %arg0 : !hal.buffer_view -> tensor<1x2xf32> in !stream.resource<external>[%c8}]      %c0_0 = arith.constant 0 : index
// 申请输出resource的空间
%1 = stream.resource.alloc uninitialized : !stream.resource<external>[%c40]
// 计算临时resource所需要的空间大小
%2:5 = stream.resource.pack slices({
  [0, 2] = %c40,  // [0, 2]是某个resource的lifetime，%40是resource size
  [1, 2] = %c4,
  [2, 4] = %c40,
  [3, 4] = %c4
}) : index
// 申请临时resource的空间
%result, %result_timepoint = stream.resource.alloca uninitialized : !stream.resource<transient>[%2#0] => !stream.timepoint
%3 = stream.cmd.execute await(%result_timepoint) => with(%0 as %arg1: !stream.resource<external>[%c8}] %1 as %arg2: !stream.resource<external>[%c40], %result as %arg3: !stream.resource<transient>[%2#0]) {
  stream.cmd.dispatch @predict_dispatch_0::@predict_dispatch_0_matmul_1x10x2[%c1, %c10] {
    ro %arg1[%c0 for %c8] : !stream.resource<external>[%c8}]
    wo %arg3[%2#1 for %c40] : !stream.resource<transient>[%2#0]
  }
  stream.cmd.dispatch @predict_dispatch_1::@predict_dispatch_1_generic_10[%c1] {
    ro %arg3[%2#1 for %c40] : !stream.resource<transient>[%2#0],
    wo %arg3[%2#2 for %c4] : !stream.resource<transient>[%2#0]
  }
  stream.cmd.dispatch @predict_dispatch_2::@predict_dispatch_2_generic_1x10[%c1, %c10] {
    ro %arg3[%2#1 for %c40] : !stream.resource<transient>[%2#0],
    ro %arg3[%2#2 for %c4] : !stream.resource<transient>[%2#0],
    wo %arg3[%2#3 for %c40] : !stream.resource<transient>[%2#0]
  }
  stream.cmd.dispatch @predict_dispatch_3::@predict_dispatch_3_generic_10[%c1] {
    ro %arg3[%2#3 for %c40] : !stream.resource<transient>[%2#0],
    wo %arg3[%2#4 for %c4] : !stream.resource<transient>[%2#0]
  }
  stream.cmd.dispatch @predict_dispatch_4::@predict_dispatch_4_generic_1x10[%c1, %c10] {
    ro %arg3[%2#3 for %c40] : !stream.resource<transient>[%2#0],
    ro %arg3[%2#4 for %c4] : !stream.resource<transient>[%2#0],
    wo %arg2[%c0_0 for %c40] : !stream.resource<external>[%c40]
  }
} => !stream.timepoint
// 释放申请的临时空间
%4 = stream.resource.dealloca await(%3) => %result : !stream.resource<transient>[%2#0] => !stream.timepoint
%5 = stream.timepoint.join max(%4, %3) => !stream.timepoint
%6 = stream.timepoint.await %5 => %1 : !stream.resource<external>[%c40]
%7 = stream.tensor.export %6 : tensor<1x10xf32> in !stream.resource<external>[%c40] -> !hal.buffer_view
return %7 : !hal.buffer_view
}
  • IREE::Stream::createPackConstantsPass 将stream.resource.constants的结果根据 lifetime 类型分成 Constant 和 Variable 两种，每一种都替换成一个util.buffer.constant 。
    util.initializer {
  %c40 = arith.constant 40 : index
  %results, %result_timepoint = stream.resource.constants :
    !stream.resource<constant>[%c40] = dense<[0.000000e+00, 0.00999999977, 2.000000e-02, 3.000000e-02, 4.000000e-02, 5.000000e-02, 6.000000e-02, 7.000000e-02, 8.000000e-02, 9.000000e-02]> : tensor<10xf32>
    => !stream.timepoint
  %0 = stream.cmd.execute with() {
  } => !stream.timepoint
  %1 = stream.timepoint.join max(%result_timepoint, %0) => !stream.timepoint
  util.global.store %results, @_constant : !stream.resource<constant>
  util.global.store %1, @_constant__timepoint : !stream.timepoint
  util.initializer.return
}

    转换成，

    util.initializer {
  %c40 = arith.constant 40 : index
  %buffer_cst = util.buffer.constant {alignment = 64 : index} : !util.buffer = #util.composite<64xi8, [
    dense<[0.000000e+00, 0.00999999977, 2.000000e-02, 3.000000e-02, 4.000000e-02, 5.000000e-02, 6.000000e-02, 7.000000e-02, 8.000000e-02, 9.000000e-02]> : tensor<10xf32>,
    dense<0> : vector<24xi8>, // 填充的无用数据
]>
  %c0 = arith.constant 0 : index
  %c64 = arith.constant 64 : index
  // 尝试将buffer映射为target (!stream.resource<constant>)
  %did_map, %result = stream.resource.try_map %buffer_cst[%c0] : !util.buffer -> i1, !stream.resource<constant>[%c64]
  %0:2 = scf.if %did_map -> (!stream.resource<constant>, !stream.timepoint) {
    // 如果可以映射，则直接返回映射的结果（!stream.resource<constant>）
    %4 = stream.timepoint.immediate => !stream.timepoint
    scf.yield %result, %4 : !stream.resource<constant>, !stream.timepoint
  } else {
    // 如果不能映射，需要先将buffer映射为缓冲区（stage），然后申请一段新的空间并从缓冲区拷贝数据（copy）。
    // 如果lifetime类型是Variable，则不需要try_map，直接走该分支（stage + copy）的实现。
    %4 = stream.resource.map %buffer_cst[%c0] : !util.buffer -> !stream.resource<staging>[%c64]
    %5 = stream.resource.alloc uninitialized : !stream.resource<constant>[%c64]
    %6 = stream.cmd.execute with(%4 as %arg0: !stream.resource<staging>[%c64], %5 as %arg1: !stream.resource<constant>[%c64]) {
      stream.cmd.copy %arg0[%c0], %arg1[%c0], %c64 : !stream.resource<staging>[%c64] -> !stream.resource<constant>[%c64]
    } => !stream.timepoint
    scf.yield %5, %6 : !stream.resource<constant>, !stream.timepoint
  }
  %1 = stream.resource.subview %0#0[%c0] : !stream.resource<constant>[%c64] -> !stream.resource<constant>[%c40]
  %2 = stream.cmd.execute with() {
  } => !stream.timepoint
  %3 = stream.timepoint.join max(%0#1, %2) => !stream.timepoint
  util.global.store %1, @_constant : !stream.resource<constant>
  util.global.store %3, @_constant__timepoint : !stream.timepoint
  util.initializer.return
}

  • IREE::Stream::createPackAllocationsPass 将包含多个 resource 的stream.resource.alloc 转换成 stream.resource.pack + stream.resource.alloc，并通过stream.resource.subview 获取每一个 resource。

  • IREE::Stream::createLayoutSlicesPass 将stream.resource.pack转化为具体的内存复用算法计算过程。
    func.func @predict(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
  %c8 = arith.constant 8 : index
  %c40 = arith.constant 40 : index
  %c4 = arith.constant 4 : index
  %c0 = arith.constant 0 : index
  %c1 = arith.constant 1 : index
  %c10 = arith.constant 10 : index
  %c553648160_i32 = arith.constant 553648160 : i32
  %c1_i32 = arith.constant 1 : i32
  %c2 = arith.constant 2 : index
  hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("tensor") shape([%c1, %c2]) type(%c553648160_i32) encoding(%c1_i32)
  %0 = stream.tensor.import %arg0 : !hal.buffer_view -> tensor<1x2xf32> in !stream.resource<external>[%c8}]    %c0_0 = arith.constant 0 : index
  // 申请输出resource的空间
  %1 = stream.resource.alloc uninitialized : !stream.resource<external>[%c40]
  // 计算临时resource所需要的空间大小
  %2:5 = stream.resource.pack slices({
    [0, 2] = %c40,  // [0, 2]是某个resource的lifetime，%40是resource size
    [1, 2] = %c4,
    [2, 4] = %c40,
    [3, 4] = %c4
  }) : index
  // 申请临时resource的空间
  %result, %result_timepoint = stream.resource.alloca uninitialized : !stream.resource<transient>[%2#0] => !stream.timepoint
  %3 = stream.cmd.execute await(%result_timepoint) => with(%0 as %arg1: !stream.resource<external>[%c8}] %1 as %arg2: !stream.resource<external>[%c40], %result as %arg3: !stream.resource<transient>[%2#0]) {
    stream.cmd.dispatch @predict_dispatch_0::@predict_dispatch_0_matmul_1x10x2[%c1, %c10] {
      ro %arg1[%c0 for %c8] : !stream.resource<external>[%c8}]
      wo %arg3[%2#1 for %c40] : !stream.resource<transient>[%2#0]
    }
    stream.cmd.dispatch @predict_dispatch_1::@predict_dispatch_1_generic_10[%c1] {
      ro %arg3[%2#1 for %c40] : !stream.resource<transient>[%2#0],
      wo %arg3[%2#2 for %c4] : !stream.resource<transient>[%2#0]
    }
    stream.cmd.dispatch @predict_dispatch_2::@predict_dispatch_2_generic_1x10[%c1, %c10] {
      ro %arg3[%2#1 for %c40] : !stream.resource<transient>[%2#0],
      ro %arg3[%2#2 for %c4] : !stream.resource<transient>[%2#0],
      wo %arg3[%2#3 for %c40] : !stream.resource<transient>[%2#0]
    }
    stream.cmd.dispatch @predict_dispatch_3::@predict_dispatch_3_generic_10[%c1] {
      ro %arg3[%2#3 for %c40] : !stream.resource<transient>[%2#0],
      wo %arg3[%2#4 for %c4] : !stream.resource<transient>[%2#0]
    }
    stream.cmd.dispatch @predict_dispatch_4::@predict_dispatch_4_generic_1x10[%c1, %c10] {
      ro %arg3[%2#3 for %c40] : !stream.resource<transient>[%2#0],
      ro %arg3[%2#4 for %c4] : !stream.resource<transient>[%2#0],
      wo %arg2[%c0_0 for %c40] : !stream.resource<external>[%c40]
    }
  } => !stream.timepoint
  // 释放申请的临时空间
  %4 = stream.resource.dealloca await(%3) => %result : !stream.resource<transient>[%2#0] => !stream.timepoint
  %5 = stream.timepoint.join max(%4, %3) => !stream.timepoint
  %6 = stream.timepoint.await %5 => %1 : !stream.resource<external>[%c40]
  %7 = stream.tensor.export %6 : tensor<1x10xf32> in !stream.resource<external>[%c40] -> !hal.buffer_view
  return %7 : !hal.buffer_view
}

    转换成，

    func.func @predict(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
  %c8 = arith.constant 8 : index
  %c40 = arith.constant 40 : index
  %c4 = arith.constant 4 : index
  %c0 = arith.constant 0 : index
  %c1 = arith.constant 1 : index
  %c10 = arith.constant 10 : index
  %c553648160_i32 = arith.constant 553648160 : i32
  %c1_i32 = arith.constant 1 : i32
  %c2 = arith.constant 2 : index
  hal.buffer_view.assert<%arg0 : !hal.buffer_view> message("tensor") shape([%c1, %c2]) type(%c553648160_i32) encoding(%c1_i32)
  %0 = stream.tensor.import %arg0 : !hal.buffer_view -> tensor<1x2xf32> in !stream.resource<external>[%c8}]    %c0_0 = arith.constant 0 : index
  %1 = stream.resource.alloc uninitialized : !stream.resource<external>[%c40]
  %c0_1 = arith.constant 0 : index
  %c64 = arith.constant 64 : index
  %c64_2 = arith.constant 64 : index
  %c128 = arith.constant 128 : index
  %c128_3 = arith.constant 128 : index
  %c192 = arith.constant 192 : index
  %c192_4 = arith.constant 192 : index
  %result, %result_timepoint = stream.resource.alloca uninitialized : !stream.resource<transient>[%c19]_4} => !stream.timepoint
  %2 = stream.cmd.execute await(%result_timepoint) => with(%0 as %arg1: !stream.resource<external>[%c8}] %1 as %arg2: !stream.resource<external>[%c40], %result as %arg3: !stream.resource<transient>[%c19]_4}) {
    stream.cmd.dispatch @predict_dispatch_0::@predict_dispatch_0_matmul_1x10x2[%c1, %c10] {
      ro %arg1[%c0 for %c8] : !stream.resource<external>[%c8}]
      wo %arg3[%c0_1 for %c40] : !stream.resource<transient>[%c19]_4}
    }
    stream.cmd.dispatch @predict_dispatch_1::@predict_dispatch_1_generic_10[%c1] {
      ro %arg3[%c0_1 for %c40] : !stream.resource<transient>[%c19]_4},
      wo %arg3[%c64_2 for %c4] : !stream.resource<transient>[%c19]_4}
    }
    stream.cmd.dispatch @predict_dispatch_2::@predict_dispatch_2_generic_1x10[%c1, %c10] {
      ro %arg3[%c0_1 for %c40] : !stream.resource<transient>[%c19]_4},
      ro %arg3[%c64_2 for %c4] : !stream.resource<transient>[%c19]_4},
      wo %arg3[%c128_3 for %c40] : !stream.resource<transient>[%c19]_4}
    }
    stream.cmd.dispatch @predict_dispatch_3::@predict_dispatch_3_generic_10[%c1] {
      ro %arg3[%c128_3 for %c40] : !stream.resource<transient>[%c19]_4},
      wo %arg3[%c0_1 for %c4] : !stream.resource<transient>[%c19]_4}
    }
    stream.cmd.dispatch @predict_dispatch_4::@predict_dispatch_4_generic_1x10[%c1, %c10] {
      ro %arg3[%c128_3 for %c40] : !stream.resource<transient>[%c19]_4},
      ro %arg3[%c0_1 for %c4] : !stream.resource<transient>[%c19]_4},
      wo %arg2[%c0_0 for %c40] : !stream.resource<external>[%c40]
    }
  } => !stream.timepoint
  %3 = stream.resource.dealloca await(%2) => %result : !stream.resource<transient>[%c19]_4} => !stream.timepoint
  %4 = stream.timepoint.join max(%3, %2) => !stream.timepoint
  %5 = stream.timepoint.await %4 => %1 : !stream.resource<external>[%c40]
  %6 = stream.tensor.export %5 : tensor<1x10xf32> in !stream.resource<external>[%c40] -> !hal.buffer_view
  return %6 : !hal.buffer_view
}
  • IREE::Util::createPropagateSubrangesPass 把 resource 转换成 (resource, size, offset, length)的元组。
    • util.global
      util.global private @_constant : !stream.resource<constant>

      转换成

      util.global private @_constant : !stream.resource<constant>
util.global private @_constant_size : index
util.global private @_constant_offset : index
util.global private @_constant_length : index
    • util.global.load
      %0 = util.global.load @foo : !stream.resource

      转换成 cpp %0 = util.global.load @foo : !stream.resource %s = util.global.load @foo_size : index %o = util.global.load @foo_offset : index %l = util.global.load @foo_length : index %1 = stream.resource.subview %0[%o] : !stream.resource<*>[%s} ]> !stream.resource<*>[%l} ]

    • util.global.store
      %1 = stream.resource.subview %0[%o] :
   !stream.resource<*>[%s} ]> !stream.resource<*>[%l}
] util.global.store %1, @foo : !stream.resource

      转换成

      util.global.store %0, @foo : !stream.resource // 这里语义是正确的吗???
util.global.store %s, @foo_size : index
util.global.store %o, @foo_offset : index
util.global.store %l, @foo_length : index
    • func.func
      func.func @foo(%0: !stream.resource) {
...
}

      转换成

      func.func @foo(%0: !stream.resource, %sz: index, %o: index, %l: index) {
%1 = stream.resource.subview %0[%o] : [%sz}]-> [%l}
]   ...
}
    • call
      %1 = stream.resource.subview %0[%o] : [%sz}]-> [%l}
] %r = call @foo(%1)

      转换成 cpp %r, %rsz, %ro, %rl = call @foo(%0, %sz, %o, %l) %2 = stream.resource.subview %r[%ro] : [%rsz] -> [%rl}]

    • return
      %1 = stream.resource.subview %0[%o] : [%sz}]-> [%l}
] return %1

      转换成

      return %0, %sz, %o, %l
    • branch ```cpp %1 = stream.resource.subview %0[%o] : [%sz}]-> [%l} ] br ^bb1(%1)

    ^bb1(%b): … 转换成 cpp br ^bb1(%0, %sz, %o, %l)

    ^bb1(%a, %b, %c, %d): %1 = stream.resource.subview %a[%b] : [%c} ]> [%d} ] ```

    • cond_branch

  • addCleanupPatterns

  • REE::Stream::createVerifyLoweringToCmdPass 验证 program 的合法性。

6.4 buildStreamOptimizationPassPipeline

  • addCleanupPatterns

  • mlir::createConvertSCFToCFPass 将structured control flow算子转换成更低层基础块形式的control flow算子。
    func.func @test(%pred: i32, %arg1: tensor<2x10xf32>, %arg2: tensor<2x10xf32>) -> tensor<2x10xf32> {
    %c0 = arith.constant 0 : i32
    %0 = arith.cmpi sgt, %pred, %c0 : i32
    %1 = scf.if %0 -> (tensor<2x10xf32>) {
      %2 = mhlo.add %arg1, %arg2 : tensor<2x10xf32>
      scf.yield %2 : tensor<2x10xf32>
    } else {
      %2 = mhlo.subtract %arg1, %arg2 : tensor<2x10xf32>
      scf.yield %2 : tensor<2x10xf32>
    }
    return %1 : tensor<2x10xf32>
}

    转换成

    func.func @test(%pred: i32, %arg1: tensor<2x10xf32>, %arg2: tensor<2x10xf32>) -> tensor<2x10xf32> {
    %c0 = arith.constant 0 : i32
    %0 = arith.cmpi sgt, %pred, %c0 : i32
    cf.cond_br %0, ^bb1, ^bb2
  ^bb1:
    %2 = mhlo.add %arg1, %arg2 : tensor<2x10xf32>
    cf.br ^bb3(%2 : tensor<2x10xf32>)
  ^bb2:
    %3 = mhlo.subtract %arg1, %arg2 : tensor<2x10xf32>
    cf.br ^bb3(%3 : tensor<2x10xf32>)
  ^bb3(%4: tensor<2x10xf32>):
    return %4 : tensor<2x10xf32>
}

  • addCleanupPatterns

  • IREE::Stream::createElideTimepointsPass 消除已经确信到达的等待。比如
    %timepoint0 = ...
%timepoint1 = ... await(%timepoint0)
%timepoint2 = stream.timepoint.join max(%timepoint0, %timepoint1)

    timepoint1 到达时 timepoint0 一定已经达到过，因此可以转换成，

    %timepoint0 = ...
%timepoint1 = ... await(%timepoint0)
%timepoint2 = stream.timepoint.join max(%timepoint1)

    canonicalization 之后最终是

    %timepoint0 = ...
%timepoint1 = ... await(%timepoint0)
%timepoint2 = %timepoint1

  • IREE::Util::createFixedPointIteratorPass 该 pass 触发重复执行一个 pass pipeline，直到达到固定迭代次数或最大迭代次数。这里的 pipeline 包括前面的 addCleanupPatterns 和 createElideTimepointsPass 两个子 pass。

  • IREE::Stream::createFuseDispatchBindingsPass 根据stream.cmd.dispatch的 resource 关系合并dispatch executable的bindings，比如stream.cmd.dispatch两个 resource 是同一个地址的不同 range，则可以计算每个 resource 在 base 地址上的偏移，并将这两个 resource 合并成一个 binding，在dispatch executable中根据偏移来截取每个被合并的 binding。该操作默认只合并 read only 的 resource。
    stream.executable private @predict_dispatch_2 {
  stream.executable.export public @predict_dispatch_2_generic_1x10 workgroups(%arg0: index, %arg1: index) -> (index, index, index) {
    %x, %y, %z = flow.dispatch.workgroup_count_from_dag_root %arg0, %arg1
    stream.return %x, %y, %z : index, index, index
  }
  builtin.module {
    func.func @predict_dispatch_2_generic_1x10(%arg0: !stream.binding, %arg1: !stream.binding, %arg2: !stream.binding) {
      %c0 = arith.constant 0 : index
      %0 = stream.binding.subspan %arg0[%c0] : !stream.binding -> !flow.dispatch.tensor<readonly:tensor<1x10xf32>>
      %1 = stream.binding.subspan %arg1[%c0] : !stream.binding -> !flow.dispatch.tensor<readonly:tensor<f32>>
      %2 = stream.binding.subspan %arg2[%c0] : !stream.binding -> !flow.dispatch.tensor<writeonly:tensor<1x10xf32>>
      %3 = flow.dispatch.tensor.load %0, offsets = [0, 0], sizes = [1, 10], strides = [1, 1] : !flow.dispatch.tensor<readonly:tensor<1x10xf32>> -> tensor<1x10xf32>
      %4 = flow.dispatch.tensor.load %1, offsets = [], sizes = [], strides = [] : !flow.dispatch.tensor<readonly:tensor<f32>> -> tensor<f32>
      %5 = tensor.empty() : tensor<1x10xf32>
      %6 = linalg.generic {indexing_maps = [affine_map<(d0, d1) -> (d0, d1)>, affine_map<(d0, d1) -> ()>, affine_map<(d0, d1) -> (d0, d1)>], iterator_types = ["parallel", "parallel"]} ins(%3, %4 : tensor<1x10xf32>, tensor<f32>) outs(%5 : tensor<1x10xf32>) {
      ^bb0(%in: f32, %in_0: f32, %out: f32):
        %7 = arith.subf %in, %in_0 : f32
        %8 = math.exp %7 : f32
        linalg.yield %8 : f32
      } -> tensor<1x10xf32>
      flow.dispatch.tensor.store %6, %2, offsets = [0, 0], sizes = [1, 10], strides = [1, 1] : tensor<1x10xf32> -> !flow.dispatch.tensor<writeonly:tensor<1x10xf32>>
      return
    }
  }
}

func.func @predict(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
  ...
  %2 = stream.cmd.execute await(%result_timepoint) => with(%0 as %arg1: !stream.resource<external>[%c8}] %1 as %arg2: !stream.resource<external>[%c40], %result as %arg3: !stream.resource<transient>[%c19]}) {
    ...
    stream.cmd.dispatch @predict_dispatch_2::@predict_dispatch_2_generic_1x10[%c1, %c10] {
        ro %arg3[%c0 for %c40] : !stream.resource<transient>[%c19]},
        ro %arg3[%c64 for %c4] : !stream.resource<transient>[%c19]},
        wo %arg3[%c128 for %c40] : !stream.resource<transient>[%c19]}
    }
    ...
  }
}

    转换成

    stream.executable private @predict_dispatch_2 {
  stream.executable.export public @predict_dispatch_2_generic_1x10 workgroups(%arg0: index, %arg1: index) -> (index, index, index) {
    %x, %y, %z = flow.dispatch.workgroup_count_from_dag_root %arg0, %arg1
    stream.return %x, %y, %z : index, index, index
  }
  builtin.module {
    func.func @predict_dispatch_2_generic_1x10(%arg0: !stream.binding, %arg1: !stream.binding, %arg2: index, %arg3: index, %arg4: index) {
      %c0 = arith.constant 0 : index
      %0 = arith.addi %c0, %arg2 : index
      %1 = stream.binding.subspan %arg0[%0] : !stream.binding -> !flow.dispatch.tensor<readonly:tensor<1x10xf32>>
      %2 = arith.addi %c0, %arg3 : index
      %3 = stream.binding.subspan %arg0[%2] : !stream.binding -> !flow.dispatch.tensor<readonly:tensor<f32>>
      %4 = arith.addi %c0, %arg4 : index
      %5 = stream.binding.subspan %arg1[%4] : !stream.binding -> !flow.dispatch.tensor<writeonly:tensor<1x10xf32>>
      %6 = flow.dispatch.tensor.load %1, offsets = [0, 0], sizes = [1, 10], strides = [1, 1] : !flow.dispatch.tensor<readonly:tensor<1x10xf32>> -> tensor<1x10xf32>
      %7 = flow.dispatch.tensor.load %3, offsets = [], sizes = [], strides = [] : !flow.dispatch.tensor<readonly:tensor<f32>> -> tensor<f32>
      %8 = tensor.empty() : tensor<1x10xf32>
      %9 = linalg.generic {indexing_maps = [affine_map<(d0, d1) -> (d0, d1)>, affine_map<(d0, d1) -> ()>, affine_map<(d0, d1) -> (d0, d1)>], iterator_types = ["parallel", "parallel"]} ins(%6, %7 : tensor<1x10xf32>, tensor<f32>) outs(%8 : tensor<1x10xf32>) {
      ^bb0(%in: f32, %in_0: f32, %out: f32):
        %10 = arith.subf %in, %in_0 : f32
        %11 = math.exp %10 : f32
        linalg.yield %11 : f32
      } -> tensor<1x10xf32>
      flow.dispatch.tensor.store %9, %5, offsets = [0, 0], sizes = [1, 10], strides = [1, 1] : tensor<1x10xf32> -> !flow.dispatch.tensor<writeonly:tensor<1x10xf32>>
      return
    }
  }
}

func.func @predict(%arg0: !hal.buffer_view) -> !hal.buffer_view attributes {iree.abi.stub} {
  ...
  %2 = stream.cmd.execute await(%result_timepoint) => with(%0 as %arg1: !stream.resource<external>[%c8}] %1 as %arg2: !stream.resource<external>[%c40], %result as %arg3: !stream.resource<transient>[%c19]}) {
    ...
    stream.cmd.dispatch @predict_dispatch_2::@predict_dispatch_2_generic_1x10[%c1, %c10](%c0, %c64, %c128 : index, index, index) {
      ro %arg3[%c0_0 for %c192] : !stream.resource<transient>[%c19]},
      wo %arg3[%c0_0 for %c192] : !stream.resource<transient>[%c19]}
    }
    ...
  }
}

    可以看到stream.cmd.dispatch @predict_dispatch_2的 resource 被合并为 2 个，predict_dispatch_2_generic_1x10 dispatch executable参数中的 binding 也减少为 2 个，但增加了 3 个表示 offset 的 index，被合并的 binding 根据 offset 来截取。

  • IREE::Stream::createPackDispatchOperandsPass 将dispatch executable参数中的标量 /index 类型转换成 i32 或 i64 类型。
    func.func @predict_dispatch_2_generic_1x10(%arg0: !stream.binding, %arg1: !stream.binding, %arg2: index, %arg3: index, %arg4: index) {
  ...
}

    转换成

    func.func @predict_dispatch_2_generic_1x10(%arg0: !stream.binding, %arg1: !stream.binding, %arg2: i32, %arg3: i32, %arg4: i32) {
  ...
}

  • mlir::createCSEPass

  • IREE::Stream::createFoldUniformOperandsPass 折叠dispatch executable的所有调用中相同的参数。
    stream.cmd.dispatch @foo(%c1, %c100 : index, index)
stream.cmd.dispatch @foo(%c1, %c101 : index, index)
stream.cmd.dispatch @foo2(%c1, %c101 : index, index)

    转换成

    stream.cmd.dispatch @foo(%c100 : index)
stream.cmd.dispatch @foo(%c101 : index)
stream.cmd.dispatch @foo2()

    @foo内联了%c1，@foo2内联了%c1和%c101。

  • IREE::Stream::createAnnotateDispatchArgumentsPass 给dispatch executable的参数添加potential value和alignment信息。
    func.func @predict_dispatch_2_generic_1x10(%arg0: !stream.binding, %arg1: !stream.binding) {
  ...
}

    转换为

    func.func @predict_dispatch_2_generic_1x10(%arg0: !stream.binding {stream.alignment = 64 : index}, %arg1: !stream.binding {stream.alignment = 64 : index}) {
  ...
}

  • IREE::Stream::createMemoizeChannelsPass 找出所有stream.channel.default ops，为每一个stream.channel.default op创建一个全局缓冲区，同时在初始化时创建对应的 channel，并将 channel 结果写入全局缓冲区，最后将该stream.channel.default op替换为全局缓冲区的util.global.load op。

  • addCleanupPatterns

  • mlir::createSymbolDCEPass

未完待续……
